Example: Heat equation (HEAT)

One of the simplest partial differential equations is the heat equation describing the heat transfer in a solid rod.

The Mathematical Model:
The one-dimensional diffusion equation is given in the form

 u(x,t)t  =  u(x,t)xx

The subindices 't' and 'xx', respectively, denote the partial differentiation with respect to time variable t and spatial variable x varying between 0 and 1. We suppose inhomogeneous initial value  u(x,0) = sin(p x)  and homogeneous Dirichlet boundary conditions x(0,t) = x(1,t) = 0. In this simple situation, the explicit solution is known,

u(x,t)  = exp(-t p2) sin(x p )

We introduce a heat transfer coefficient c and consider the equation u(x,t)t  =  c u(x,t)xx with initial value u(x,0) = c sin(p x). c is the unknown parameter to be estimated with true value c=1. Fitting criterion for which measurements are generated, is u(0.5,t).

Schittkowski (2002): Numerical Data Fitting in Dynamical Systems - A Practical Introduction with Applications and Software, Kluwer Academic Publishers

The complete solution of a data fitting problem is described in six steps:

  1. Define model type and document the experiment
    ... set some informative strings, define the mathematical structure and the variables
  2. Specify details of the model structure
    ... set number of equations, boundary values, integration tolerances, ...
  3. Use editor for declaring variables and for defining functions
    ... the essential part, you have to know the mathematical equations and how to relate them to the format required by
  4. Insert measurement data
    ... the dirty job, can become boring (but you may import data from text files and EXCEL spreadsheets!)
  5. Select termination tolerances and start a data fitting run
    ... only a few mouse clicks
  6. A separate process is started and all computed data are displayed
    ... PDEFIT estimates parameters and performs a statistical analysis

Then you would like to take a look at reports and graphs:
    - parameter values
   - experimental data versus fitting criterion
   - surface plot of state variable

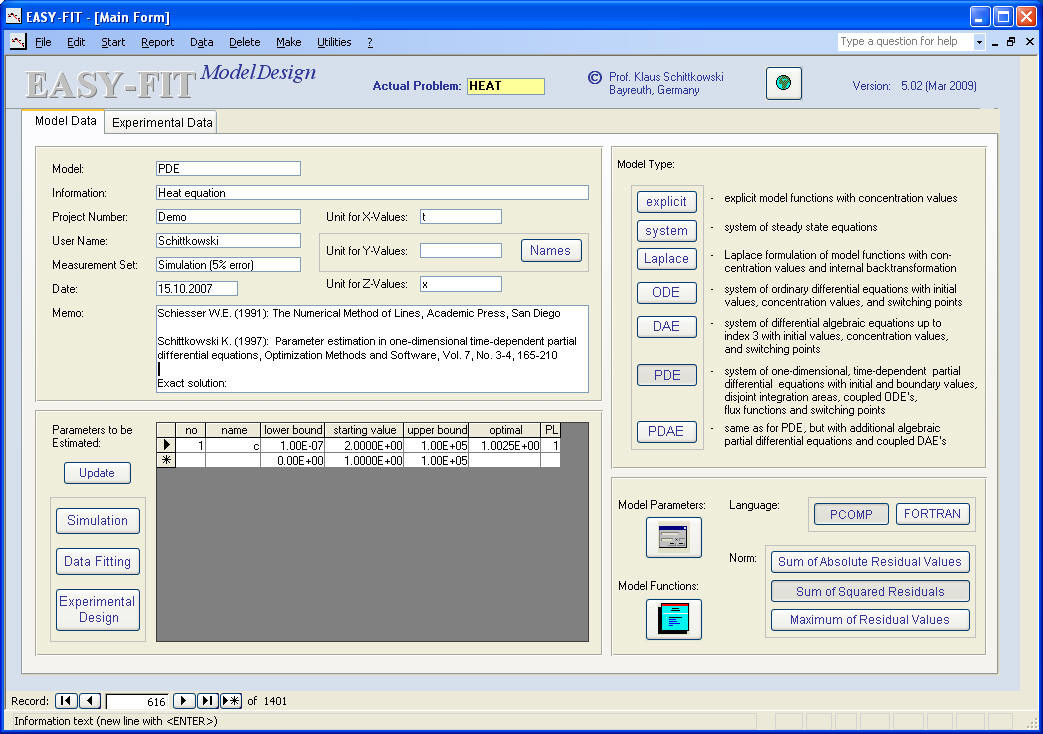

Documentation and parameters:

  Back to begin of example

Model structure:

  Back to begin of example

Model equations (or use your own favorite editor):

  Back to begin of example

Measurement data (or use import function for text file or Excel):

  Back to begin of example

Parameters, tolerances, and start of a data fitting run:

  Back to begin of example

Numerical results (computed by the least squares code DFNLP):

  Back to begin of example

Report about parameter values, residuals, performance, etc. (or export to Word):

  Back to begin of example

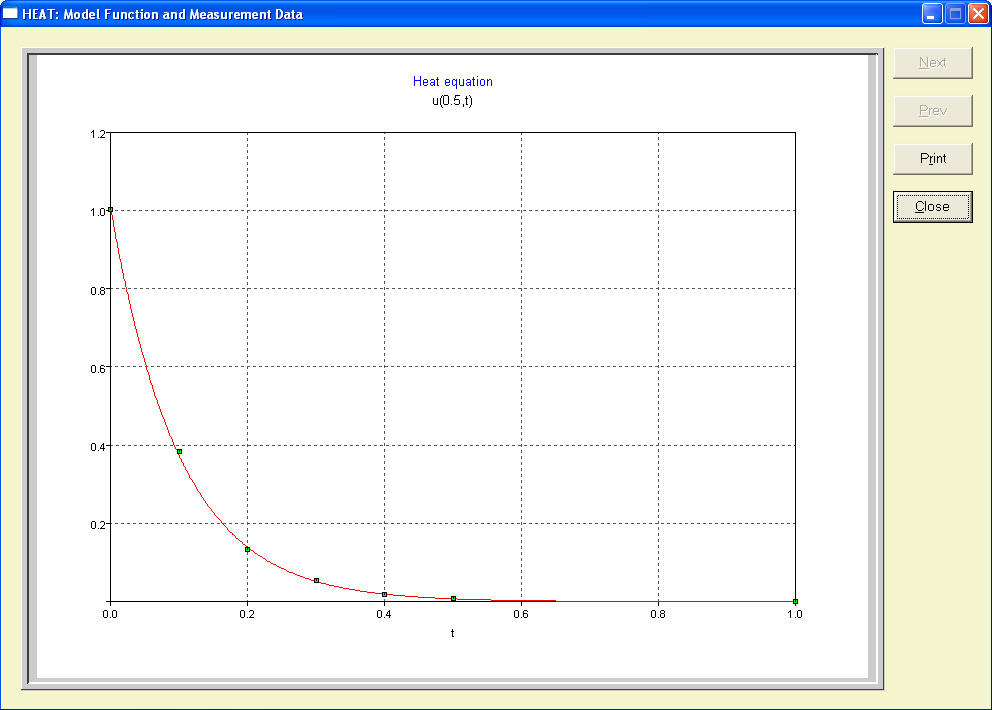

Experimental data versus fitting criterion (also available for Gnuplot):

  Back to begin of example

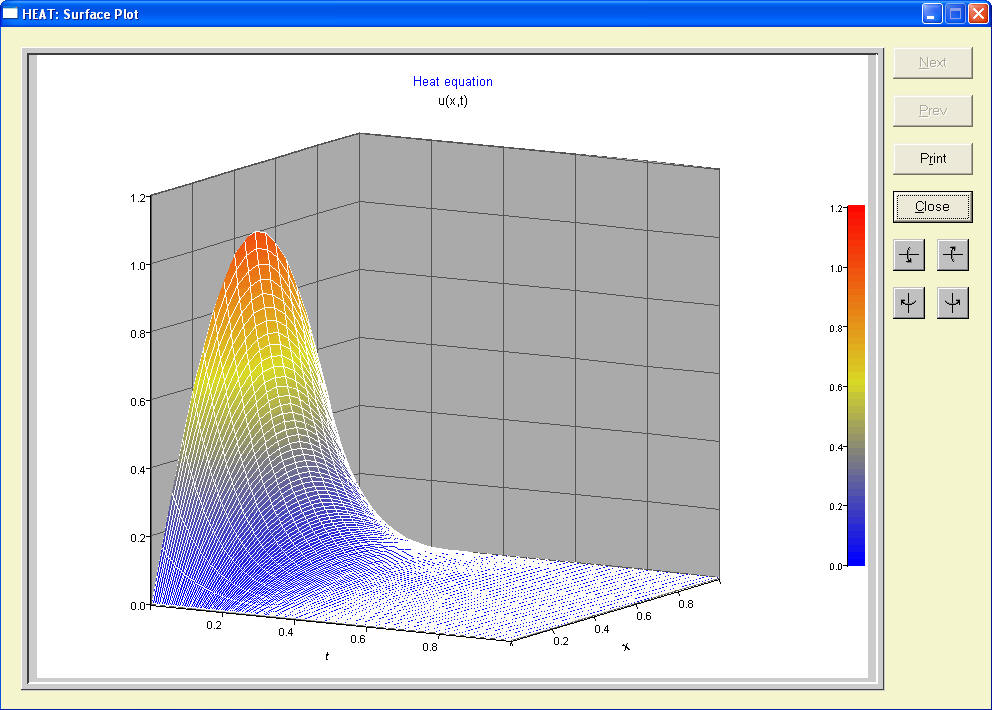

Surface plot of state variable (also available for Gnuplot):

  Back to begin of example
