Example: Linear compartment model with bolus application (LKIN)


Background:
The simple linear pharmakokinetic model could describe for example the time-dependent concentrations of plasma and urine based on a simple bolus application.

The Mathematical Model:
The underlying ordinary differential equation is

y1(t)t  =  -kiy1(t)

y2(t)t  =  kiy1(t) -  k2y2(t)

with initial values  y1(0)=D, the initial dose, and  y2(0)=0. Parameters to be estimated, are the rate constants  ki and  k2, and the dose D. Experimental data are available for  y1(t) and y2(t) for 13 time values between 1 min and 60 min. The lower index t denotes the time derivative of the concentrations  y1(t) and y2(t).

Literature:
1. Heinzel G., Woloszczak R., Thomann P. (1993): TOPFIT 2.0: Pharmacokinetic and Pharmacodynamic Data Analysis System, G. Fischer, Stuttgart, Jena, New York
2. Schittkowski (2002): Numerical Data Fitting in Dynamical Systems - A Practical Introduction with Applications and Software, Kluwer Academic Publishers


Implementation:
The complete solution of a data fitting problem is described in six steps:

  1. Define model type and document the experiment

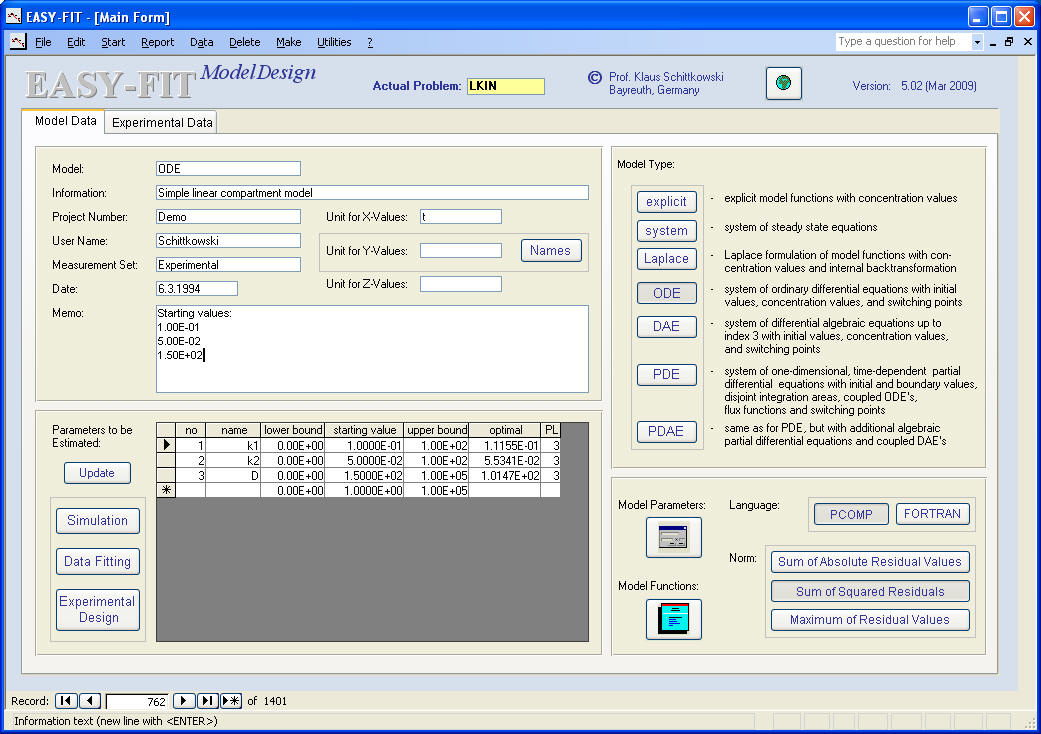

    ... set some informative strings, define the mathematical structure and the variables
  2. Specify details of the model structure

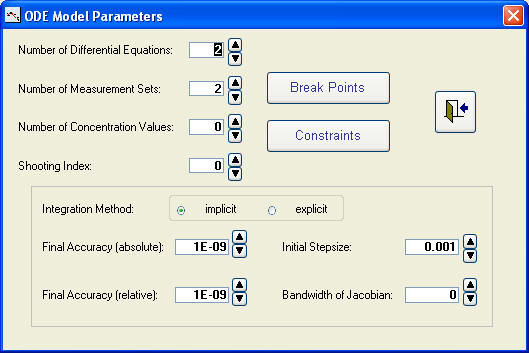

    ... set number of equations, tolerances, constraints, concentration values, ...

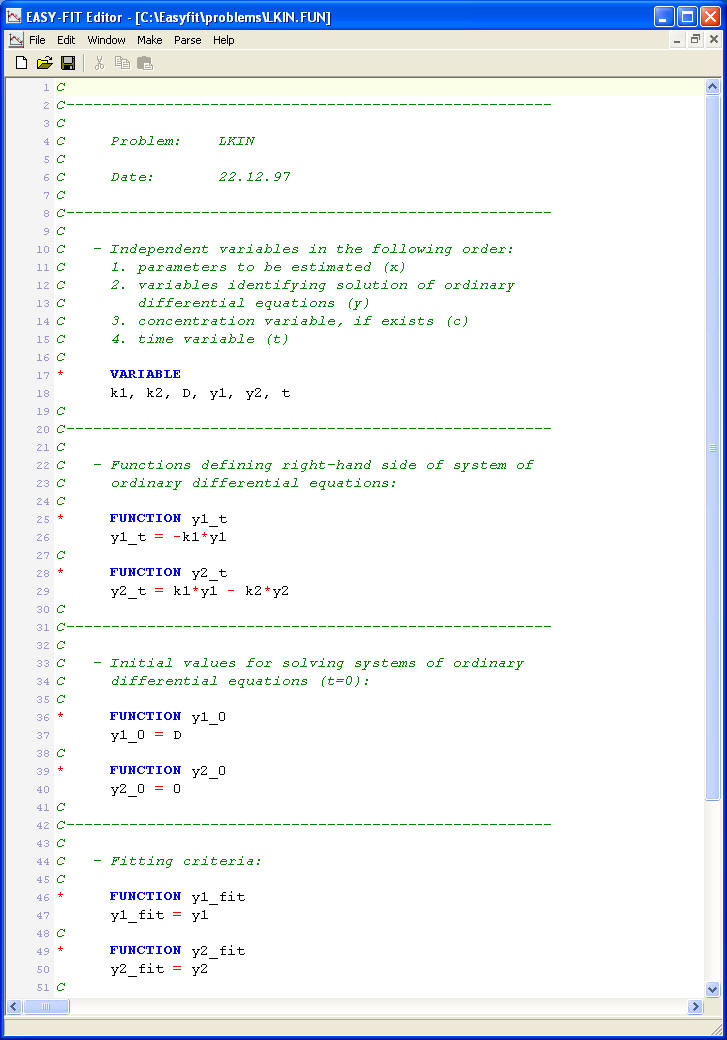

  3. Use editor for declaring variables and for defining functions
    ... the essential part, you have to know the mathematical equations and how to relate them to the format required by
    EASY-FITModelDesign
  4. Insert measurement data
    ... the dirty job, can become boring (but you may import data from text files and EXCEL spreadsheets!)
  5. Select termination tolerances and start a data fitting run
    ... only a few mouse clicks
  6. A separate process is started and all computed data are displayed
    ... MODFIT estimates parameters and performs a statistical analysis

Results:
Then you would like to take a look at reports and graphs:
    - parameter values
   - experimental data versus fitting criterion



Documentation and parameters:

  Back to begin of example

Model structure:

  Back to begin of example

Model equations (or use your own favorite editor):

  Back to begin of example

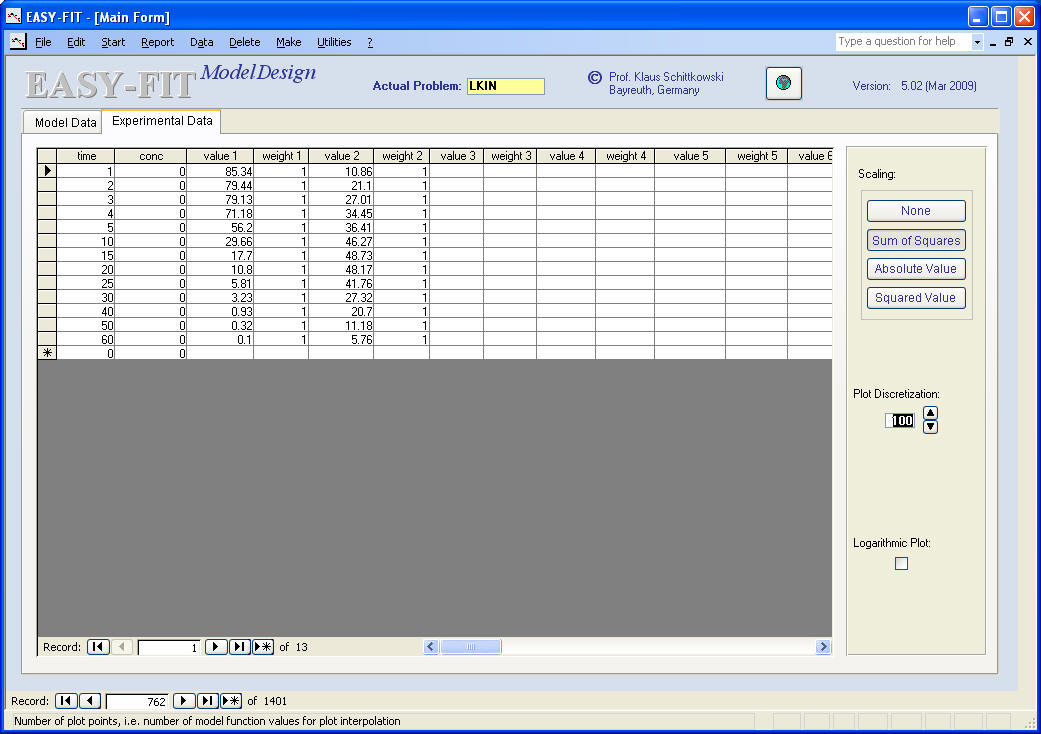

Measurement data (or use import function for text file or Excel):

  Back to begin of example

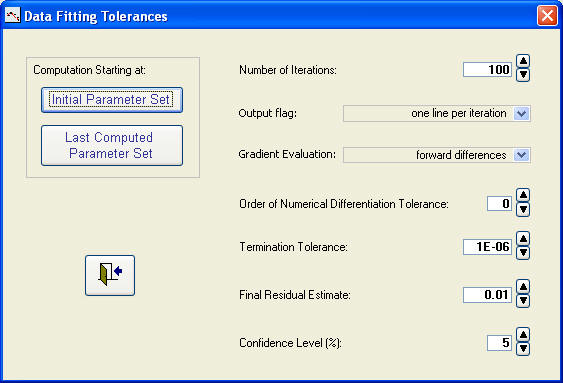

Parameters, tolerances and start of a data fitting run:

  Back to begin of example

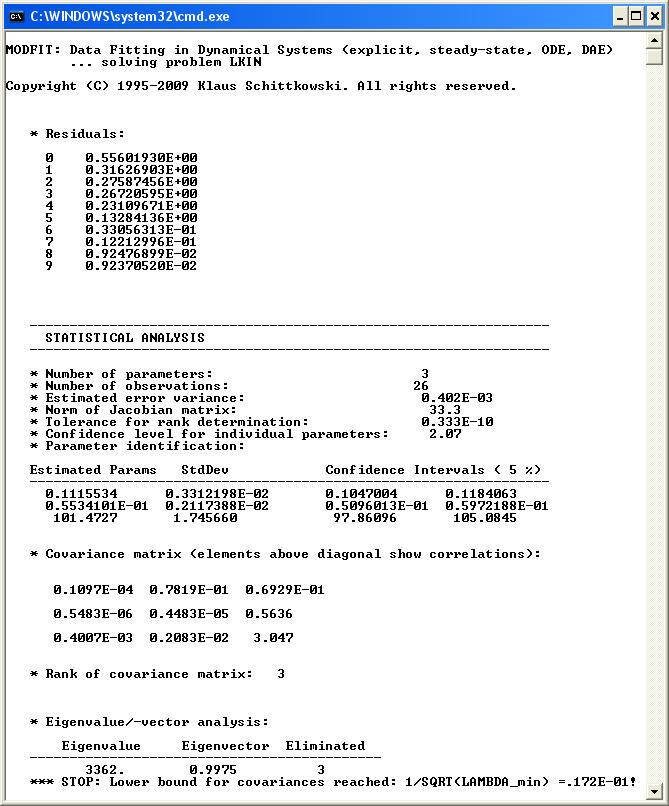

Numerical results (computed by the least squares code DFNLP):

  Back to begin of example

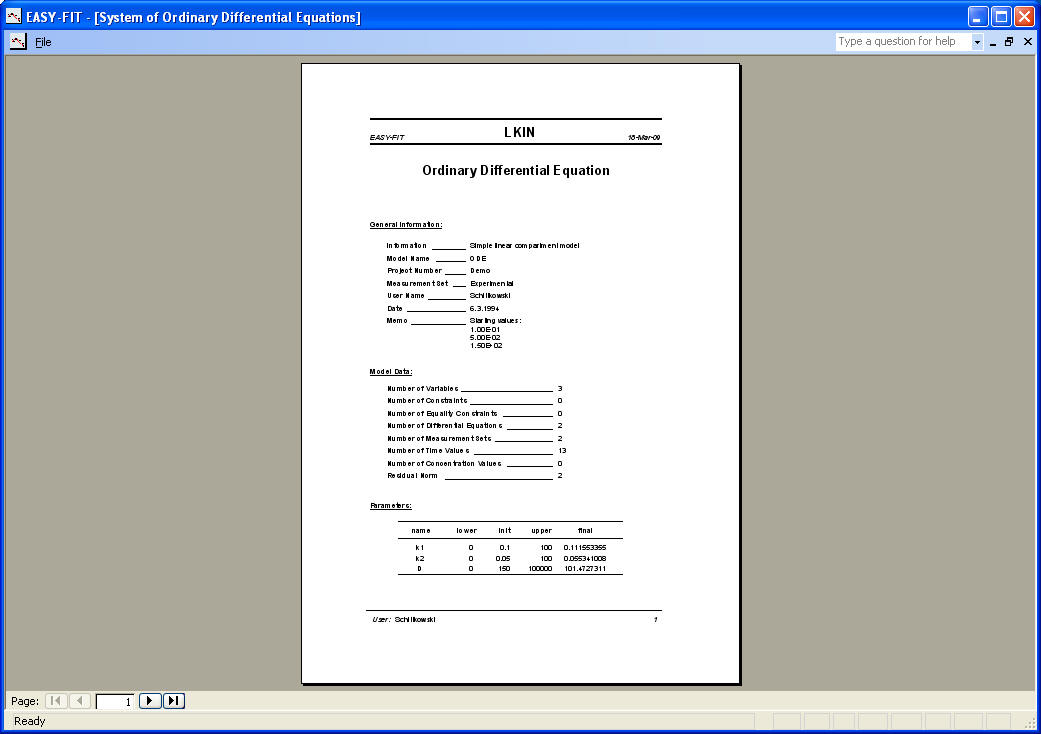

Report on parameter values, residuals, performance, etc. (or export to Word):

  Back to begin of example

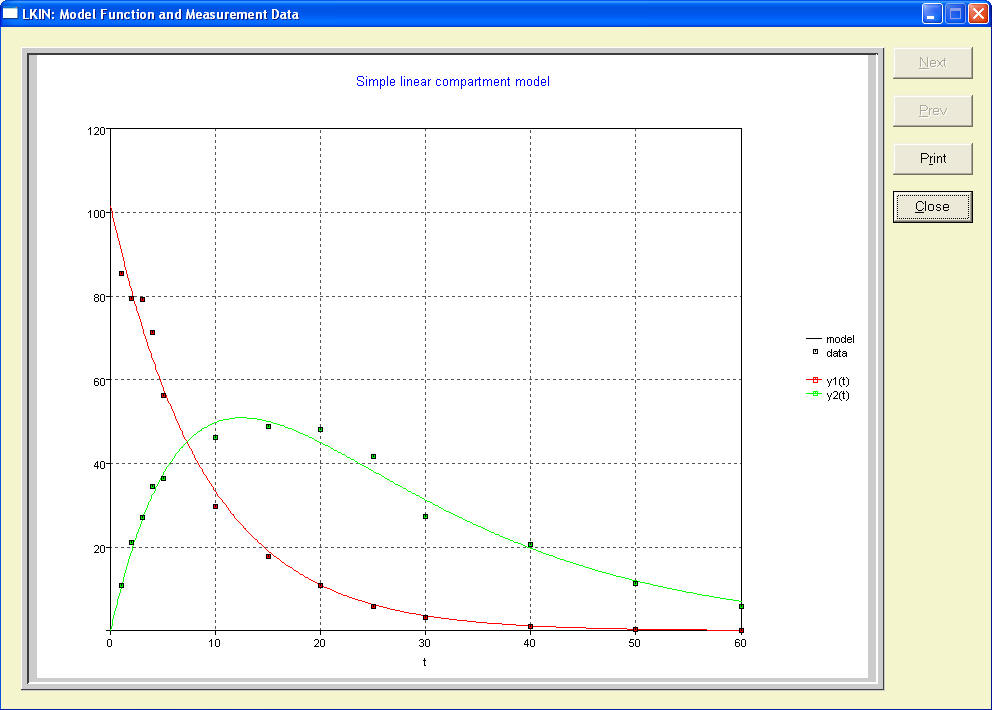

Experimental data versus fitting criterion (also available for Gnuplot):

  Back to begin of example
