Example: Receptor-ligand binding study (RECLIC19)

Background:
The relationship between one antibody, the receptor, and two antigens, the ligands, can be described by equations based on the mass equilibrium under certain assumptions. The resulting system of nonlinear equations does not depend on the time, i.e., is a steady-state-system.

The Mathematical Model:
After some transformations, we get

 z1(c) (1 + p1 z2(c) + p2 z3(c)) - p3  =  0
z2(c) (1 + p1 z1(c)) - p4  =  0
z3(c) (1 + p2 z1(c)) - c  =  0

z1, z2, and z3 are the state variables, i.e., the solution variables of the system of equations, depending on a concentration c for which measurements subject to the fitting criterion p4 - z2(c) are retrieved. Parameters to be estimated, are p1, p2, p3 and p4.

Literature:
1. Rominger K.L., Albert H.J. (1985): Radioimmunological determination of Fenoterol. Part I: Theoretical fundamentals, Arzneimittel-Forschung/Drug Research, Vol. 35, No. 1a, 415-420
2. Schittkowski (2002): Numerical Data Fitting in Dynamical Systems - A Practical Introduction with Applications and Software, Kluwer Academic Publishers

Implementation:
The complete solution of a data fitting problem is described in six steps:

  1. Define model type and document the experiment
    ... set some informative strings, define the mathematical structure and the variables
  2. Specify details of the model structure
    ... set number of equations, tolerances, constraints, concentration values, ...
  3. Use editor for declaring variables and for defining functions
    ... the essential part, you have to know the mathematical equations and how to relate them to the format required by     EASY-FITModelDesign
  4. Insert measurement data
    ... the dirty job, can become boring (but you may import data from text files and EXCEL spreadsheets!)
  5. Select termination tolerances and start a data fitting run
    ... only a few mouse clicks
  6. A separate process is started and all computed data are displayed
    ... MODFIT estimates parameters and performs a statistical analysis

Results:
Then you would like to take a look at reports and graphs:
    - parameter values
   - experimental data versus fitting criterion

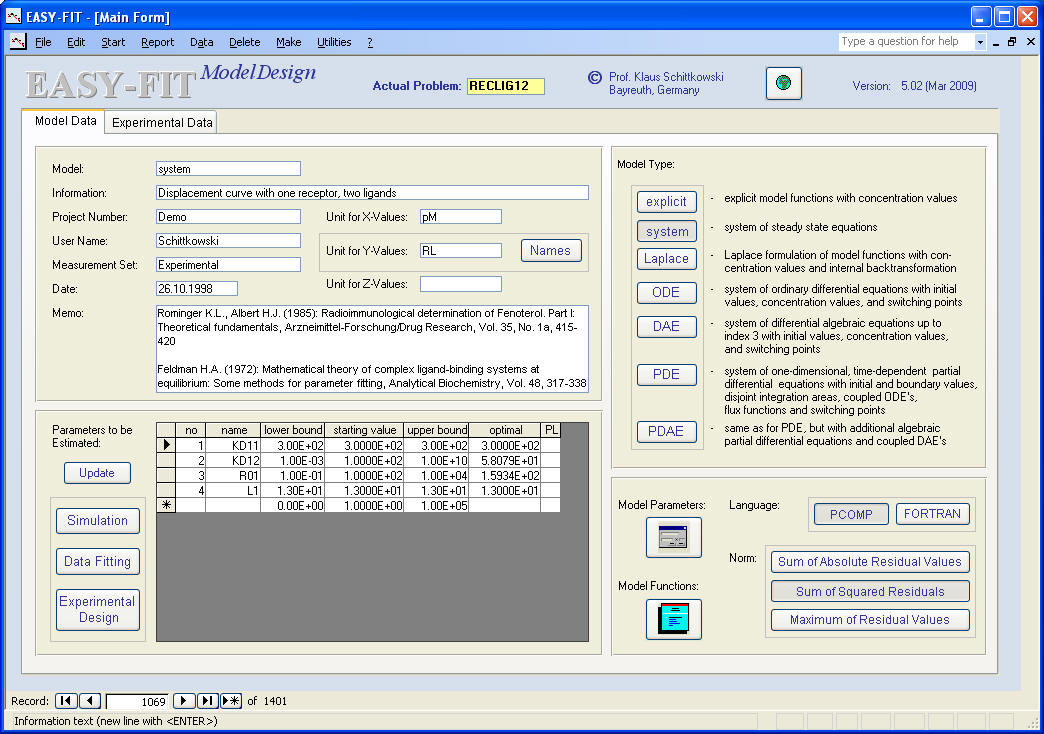

Documentation and parameters:

  Back to begin of example

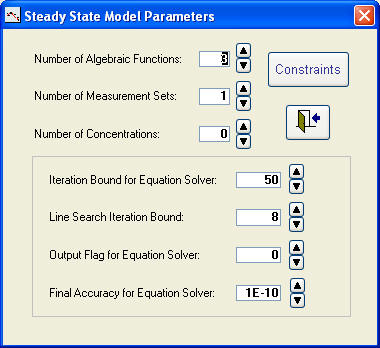

Model structure:

  Back to begin of example

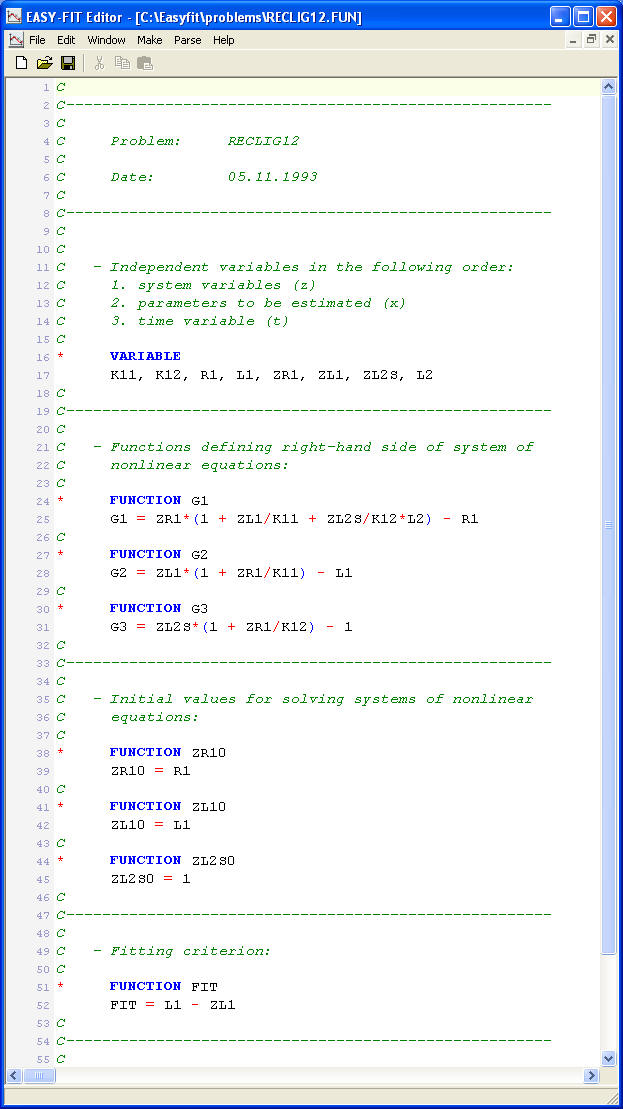

Model equations (or use your own favorite editor):

  Back to begin of example

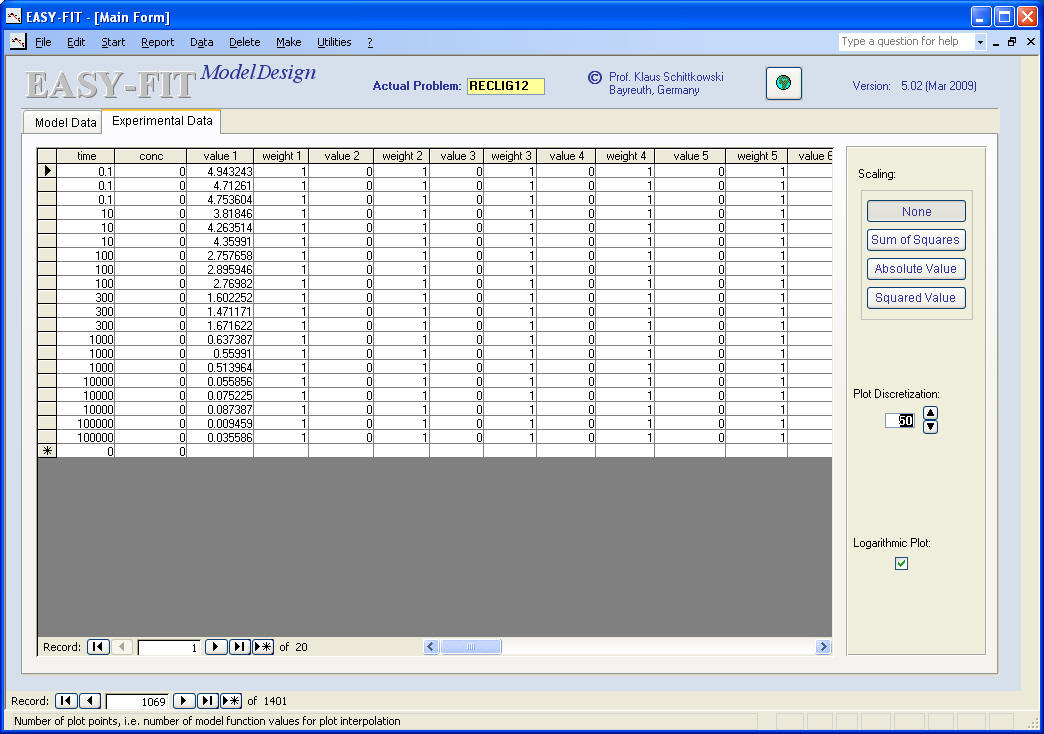

Measurement data (or use import function for text file or Excel):

  Back to begin of example

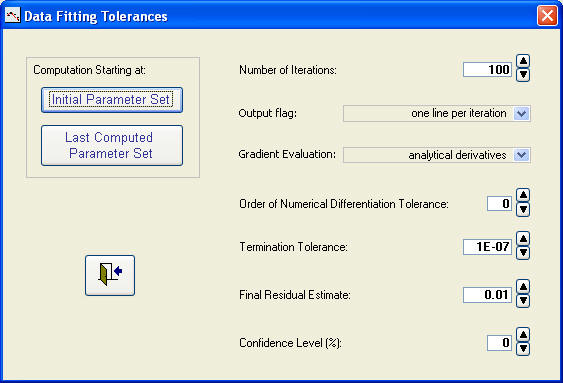

Parameters, tolerances and start of a data fitting run:

  Back to begin of example

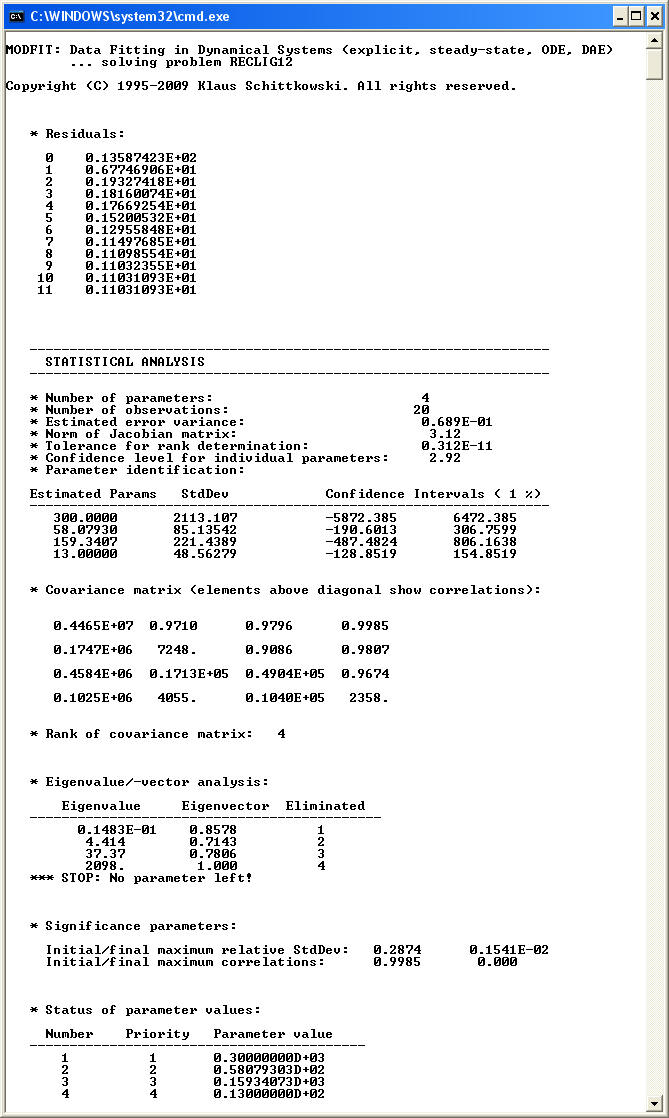

Numerical results (computed by the least squares code DFNLP):

  Back to begin of example

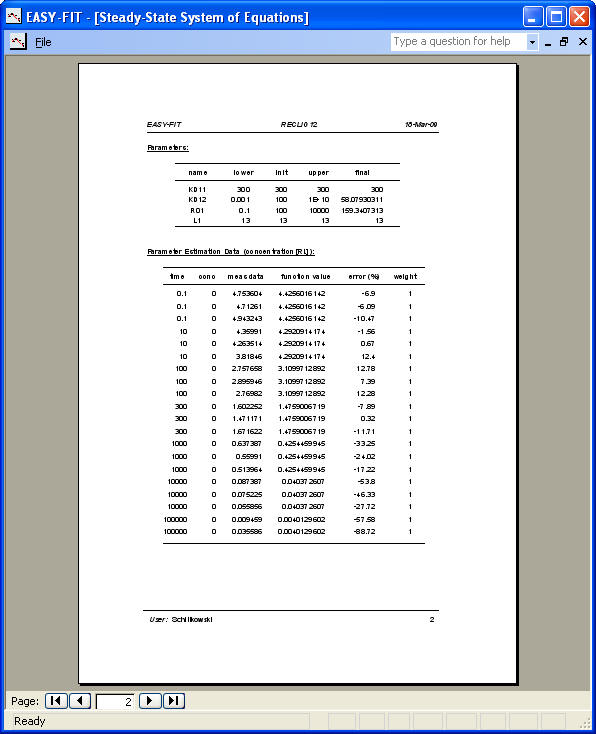

Report on parameter values, residuals, performance, etc. (or export to Word):

  Back to begin of example

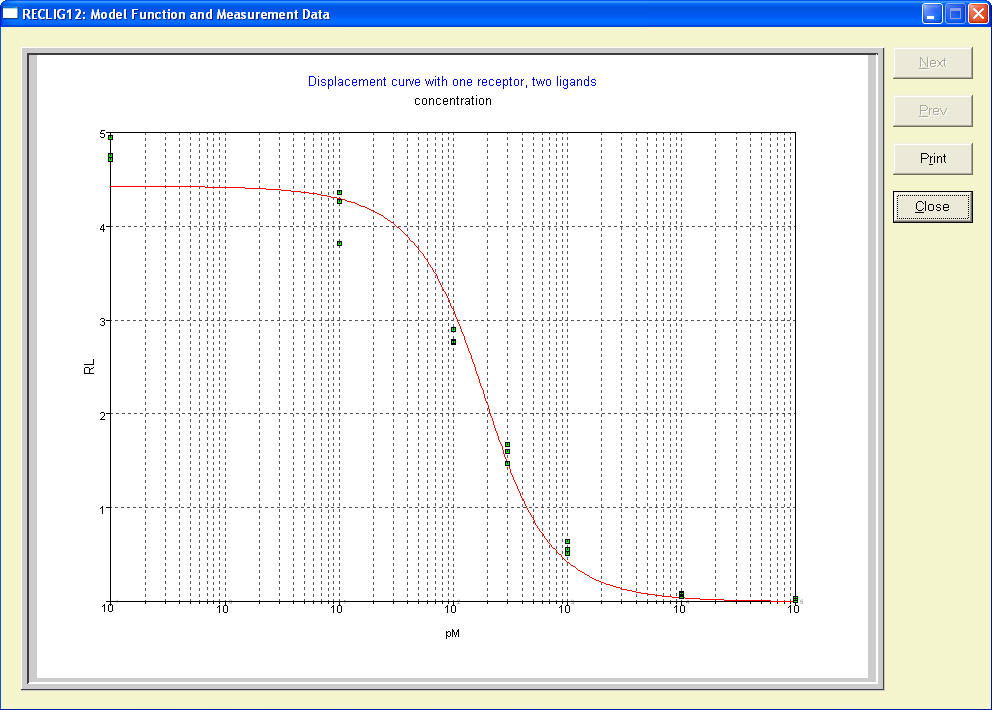

Experimental data versus fitting criterion (also available for Gnuplot):

  Back to begin of example
